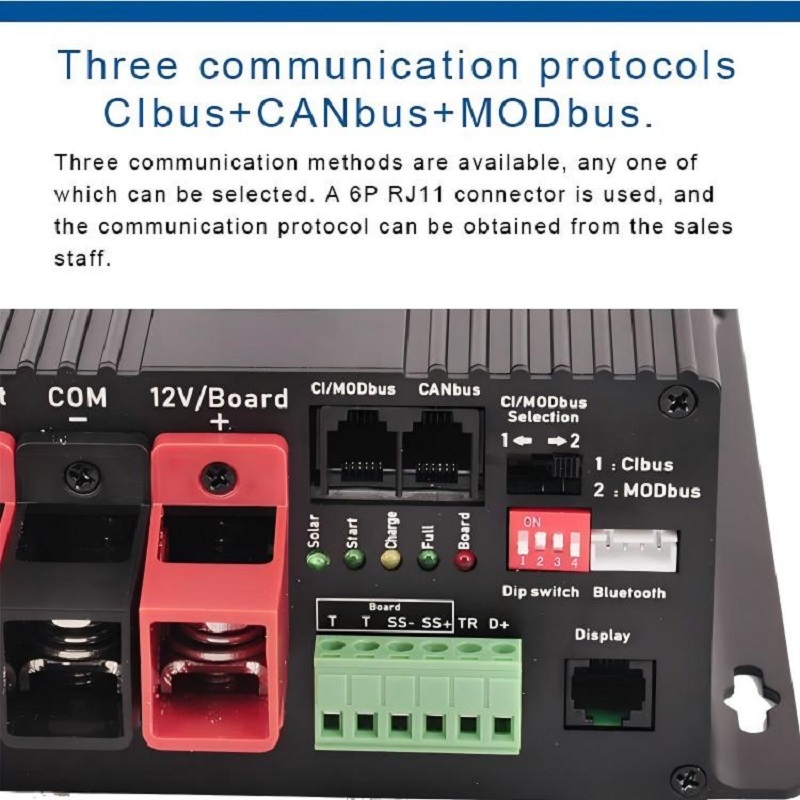

12V 60A DC-DC Battery Charger Protocols Interfaces: Canbus Cibus Modbus

MPPT Solar charge controller "AC on +12V" This is an AC input signal. When the charger is connected to the main battery and AC input, this terminal will output 12V/1A voltage. This signal can be used to indicate whether the AC input is normal or not. It can also be used as a mark for AC charging mode. AC Charge AC charging has priority. When the charger is connected to external AC socket, the AC charging mode will start immediately, stop solar charging or B2B charging. When the AC socket is removed, it will automatically switch to solar charging. Remove the AC socket connection, stop the engine (D+ low), orientate the solar panels towards the sun. The charger works, the LED "Solar" is lighting. Controllers according to the MPP technology are continuously and automatically calculating the maximum power yield (MPP) of the solar modules several times per second. The voltage surplus of the solar module will be transformed to a higher charging current for the battery (realised by high-frequency switching controller technology with high efficiency). This surplus of charging current ensures short charging times and the best possible power yield of the solar system.

Model	ABS26040		ABS23020
Main battery	12V
Main battery type	GEL,Dealed,Flooded,LiFe PO4,Lithium-ion
Vehicle Starter Battery	12V
Max.Charging Power	390W		780W
Main Battery Max, Charging Current	30A		60A
Self-consumption Current	24 mA		24mA
Dimension	190*194*70mm		190*215*70mm
Weight	1.44KG		1.6KG
Accessories	Monitor (MT-2) Dongle (BT0)Temperature Sensor (TRS)
Starter Battery Type	Lead-Acid

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Western Europe(30.00%),North America(30.00%),Northern Europe(15.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. why should you buy from us not from other suppliers?
We have more than 15 years of experience in design and development From 2006 to now , Oxiang has 15 years of Chinese market development, sales, service, accumulation and summary. Our products has covered with most countries in the world.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese
